Welded cold drawn smooth bore tubes (HPS) tol. H9 EN 10305-2, steel grade E355 +C, Ra = max. 0,8 my, WT tolerance = +/- 3 %, in lengths of 5.000 – 7.000 mm, ends protected with plastic caps, in bundles of amx. 1,5 mt

OD 40 – 120 mm
ID 30 – 110 mm
WT 5 – 10 mm

Seamless cold drawn precision tubes (HPZ) EN 10305-1, steel grade E355 +SR, suitable for skiving and roller burnishing, ID tolerance to be agreed upon, WT tolerance = +/- 10 %, in lengths of 5.000 – 12.000 mm, outside surface phosphated, inside and outside sligthly oiled, ends protected with plastic caps, in bundles of max. 1,5 mt

OD 50 – 350 mm
ID 40 – 250 mm
WT 5 – 25 mm

Welded cold drawn precision tubes (HPZ) EN 10305-2, steel grade E355 +SR, suitable for skiving and roller burnishing, ID tolerance to be agreed upon, WT tolerance = +/- 7,5 %, in lengths of 5.000 – 12.000 mm, outside surface phosphated, inside and outside sligthly oiled, ends protected with plastic caps, in bundles of max. 1,5 mt

OD 50 – 200 mm
ID 40 – 165 mm
WT 5 – 17,5 mm

Seamless cold drawn cylinder tubes (HP), tol. H8, EN 10305-1, steel grade E355 +SR, skived and roller burnished, Ra = max. 0,3 my, ID tolerance H8, WT tolerance = +/- 10 %, in lengths of 5.000 – 12.000 mm, outside surface phosphated, inside and outside sligthly oiled, ends protected with plastic caps, in bundles of max. 1,5 mt

OD 50 – 350 mm
ID 40 – 250 mm
WT 5 – 25 mm

Welded cold drawn cylinder tubes (HP), tol. H8, EN 10305-1, steel grade E355 +SR, skived and roller burnished, Ra = max. 0,3 my, ID tolerance H8, WT tolerance = +/- 7,5 %, in lengths of 5.000 – 12.000 mm, outside surface phosphated, inside and outside sligthly oiled, ends protected with plastic caps, in bundles of max. 1,5 mt

OD 50 – 200 mm
ID 40 – 165 mm
WT 5 – 17,5 mm

Components made of hot rolled seamless cylinder tubes, EN 10210, steel grades S355J2H, STE 470 +N (20MnV6), skived and roller burnished, Ra = max. 0,3 my, ID tolerance H8, WT tolerance = +/- 10 %, machining acc. to drawing, in lengths of max. 2.500 mm, outside surface phosphated, inside and outside sligthly oiled, ends protected with plastic caps, in bundles of max. 1,5 mt

OD 50 – 168,3 mm
ID 40 – 145 mm
WT 7,5 – 20 mm

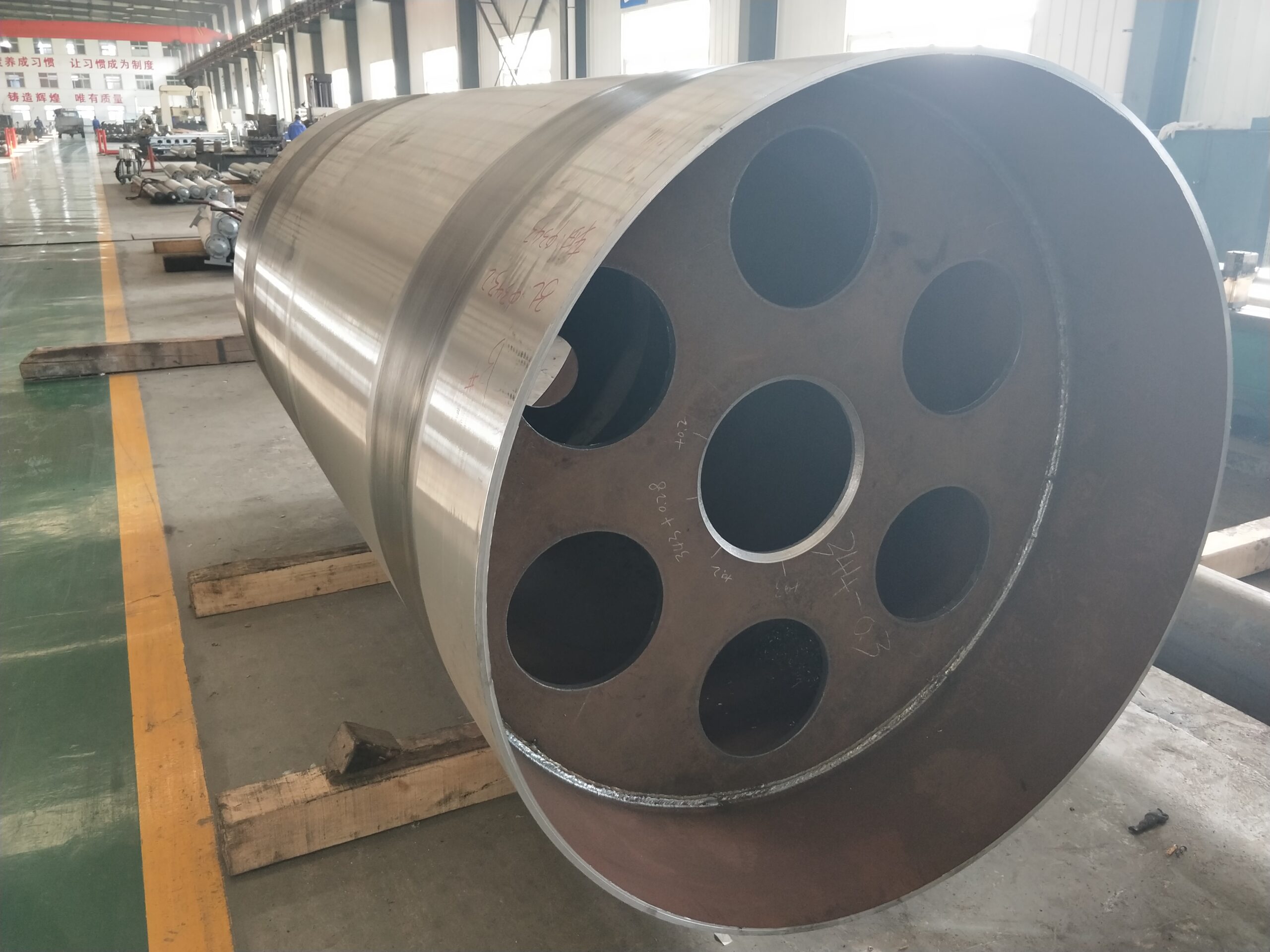

Cylinder tubes made of hot rolled seamless tubes EN 10210, in steel grade S355J2H + N / open die forgings – steel grades to be agreed upon, drilled and honed, Ra = max. 0,3 my, tol. H8, in lengths up max. 20,0 m

ID 250 – 1.000 mm
Length max. 20.000 mm
